CS-1560L30-7DJ

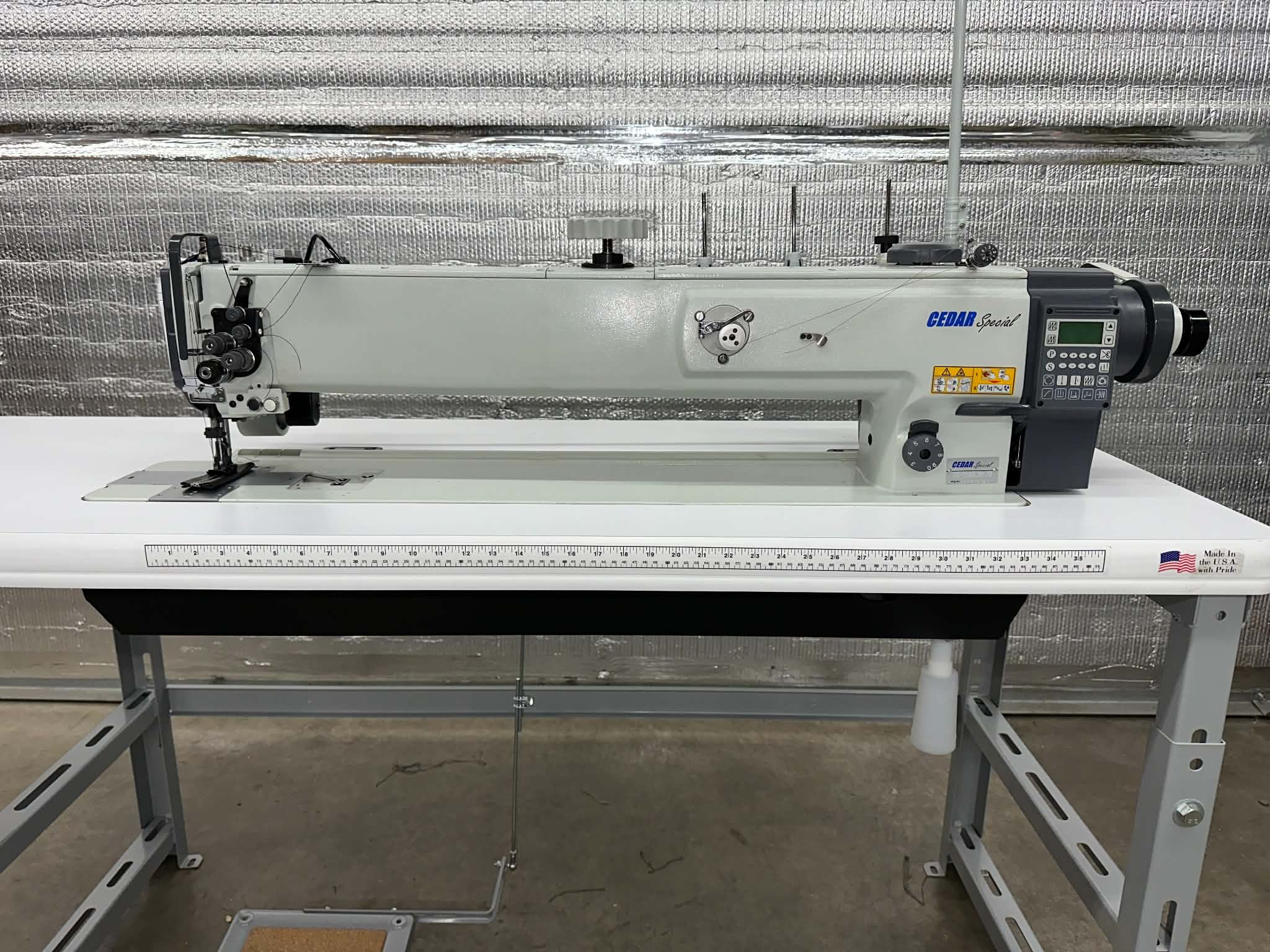

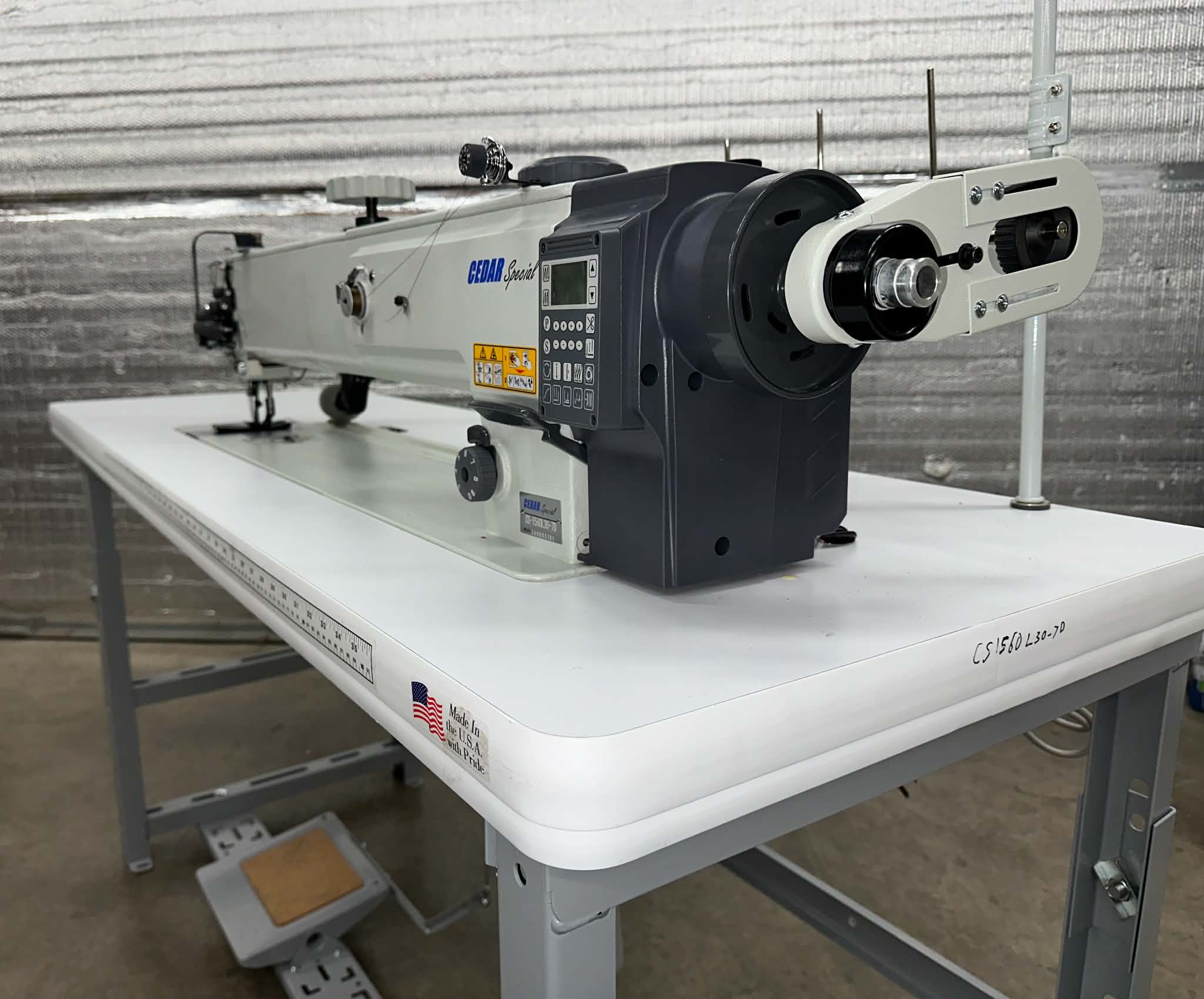

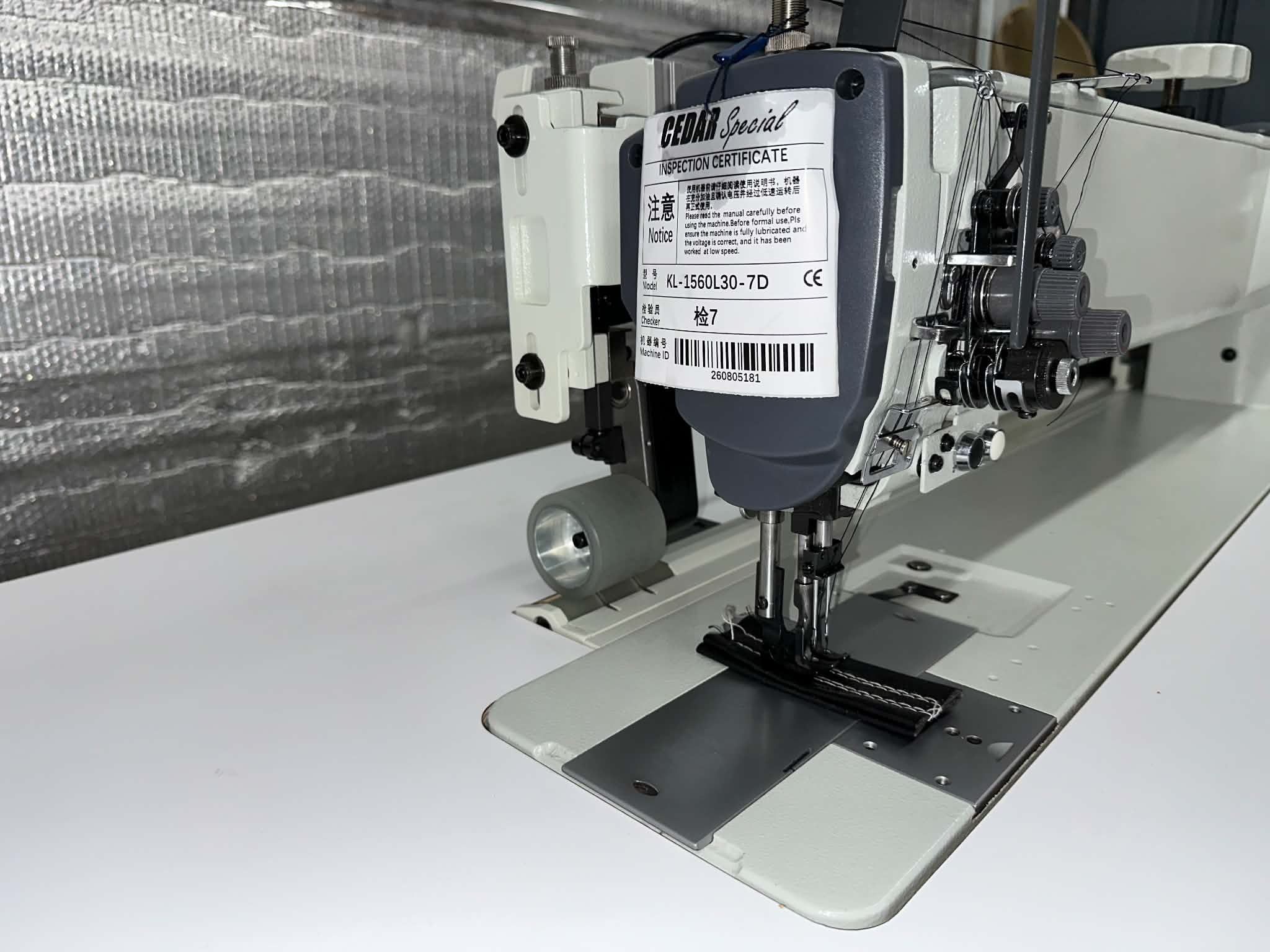

The CEDAR Special CS-1560L30-7DJ with a 30" Long Arm clearance is a heavy-duty, 2-needle unison-feed (walking foot) lockstitch machine featuring an automatic thread trimmer and an alternating foot stroke adjusting dial. It is built for heavy materials like leather, canvas, upholstery, and vinyl.
* Key Specifications

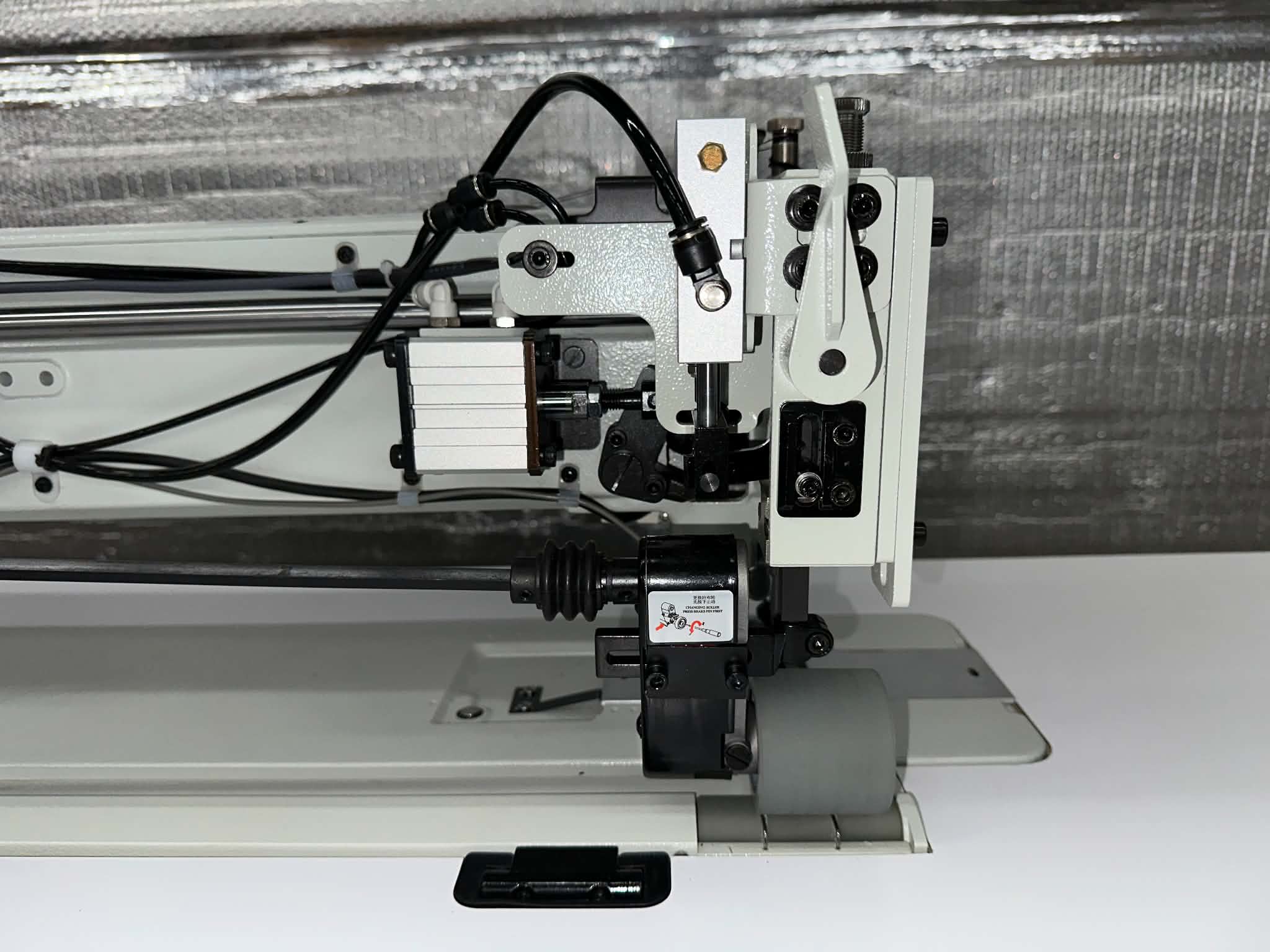

* With or without Rear Puller.
* Direct Drive
* Automatic Thread Trim
* Automatic Back Tack
* Automatic Foot Lift
* Sewing Speed: Up to 2,000 stitches per minute (spi/min)

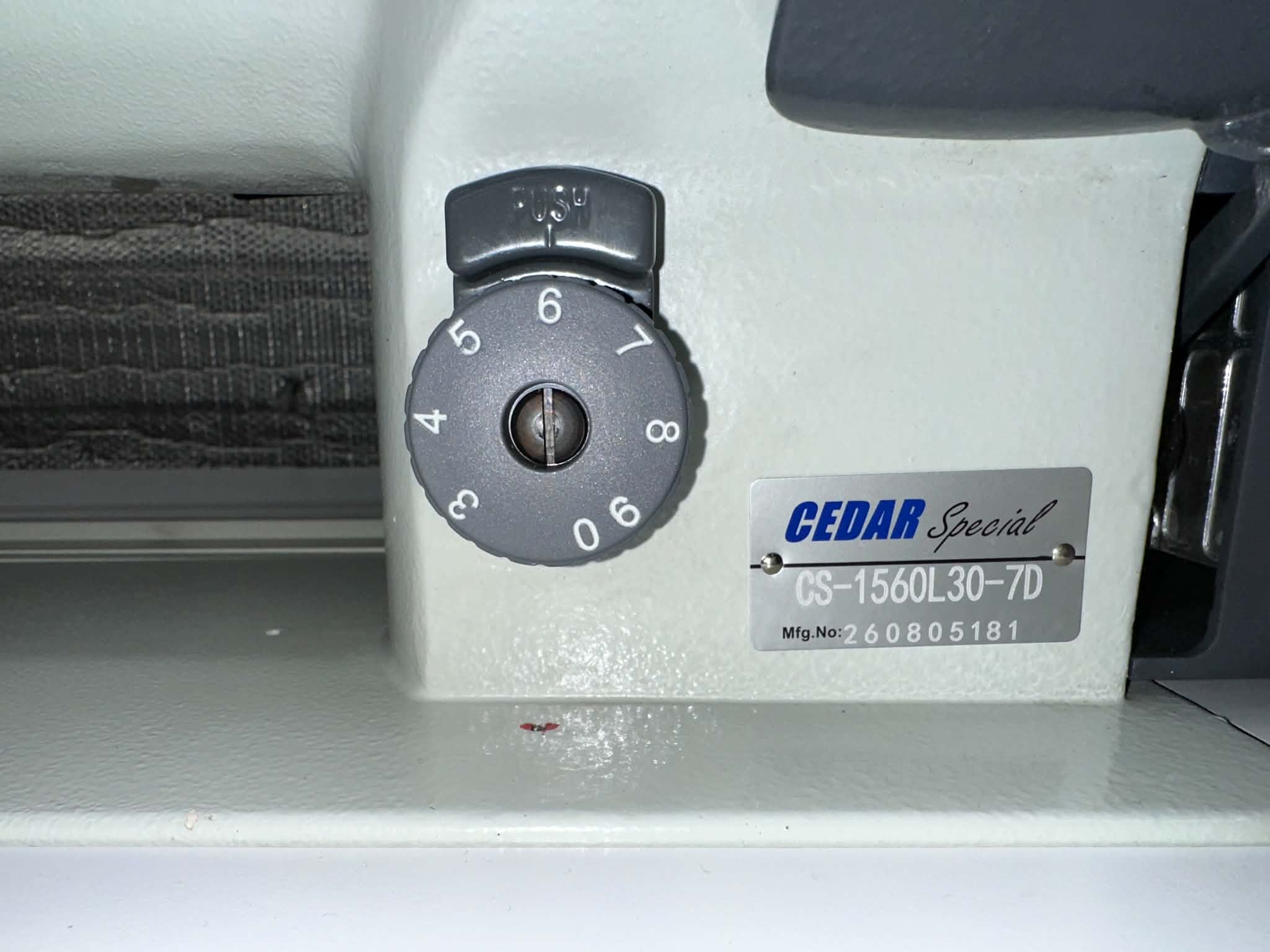

* Stitch Length: Up to 9 mm (both forward and reverse)
* Needle System: 135x17 (Sizes from Nm125 to Nm180)
* Needle Bar Stroke: 36 mm
* Presser Foot Lift: 9 mm (by hand), 16 mm (by knee or auto-lifter)
* Alternating Vertical Movement: Adjustable between 1 mm to 6.5 mm
* Hook: Vertical-axis double-capacity hooks
* Standard Needle Gauges: 1/4" (6.4 mm) (Available from 3/16" to 1/2")
* Custom Folders, Binders, Hemmers, Guides and Clamp Sets for the Sewn Products Industry.
For more information, call or email.
