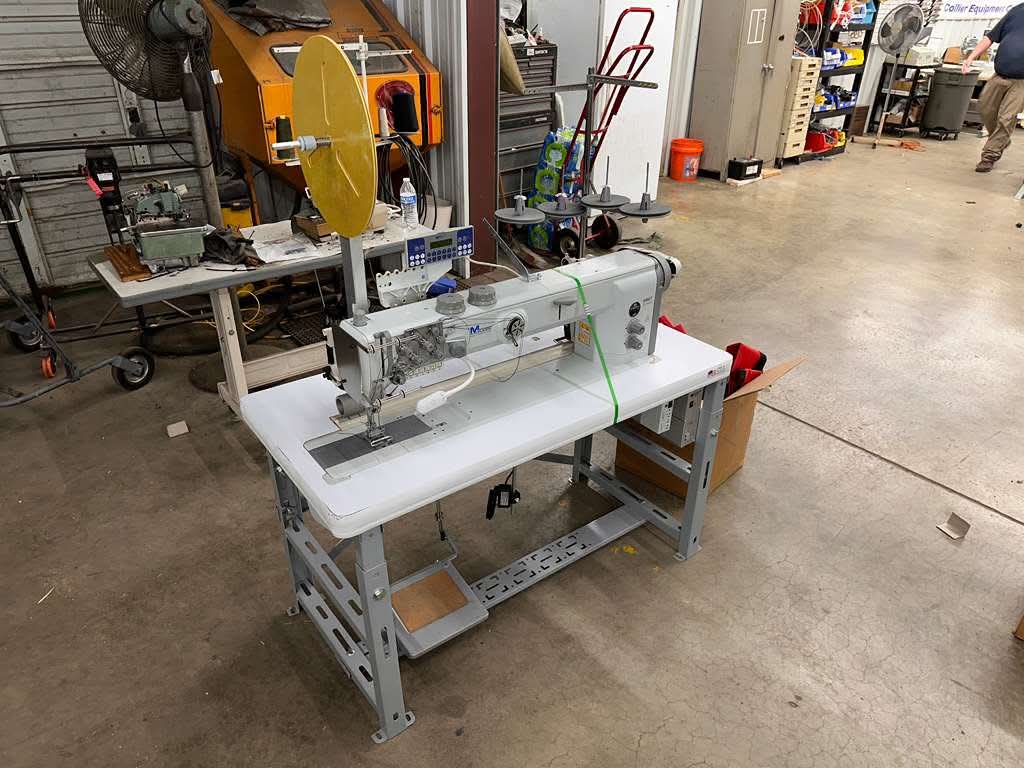

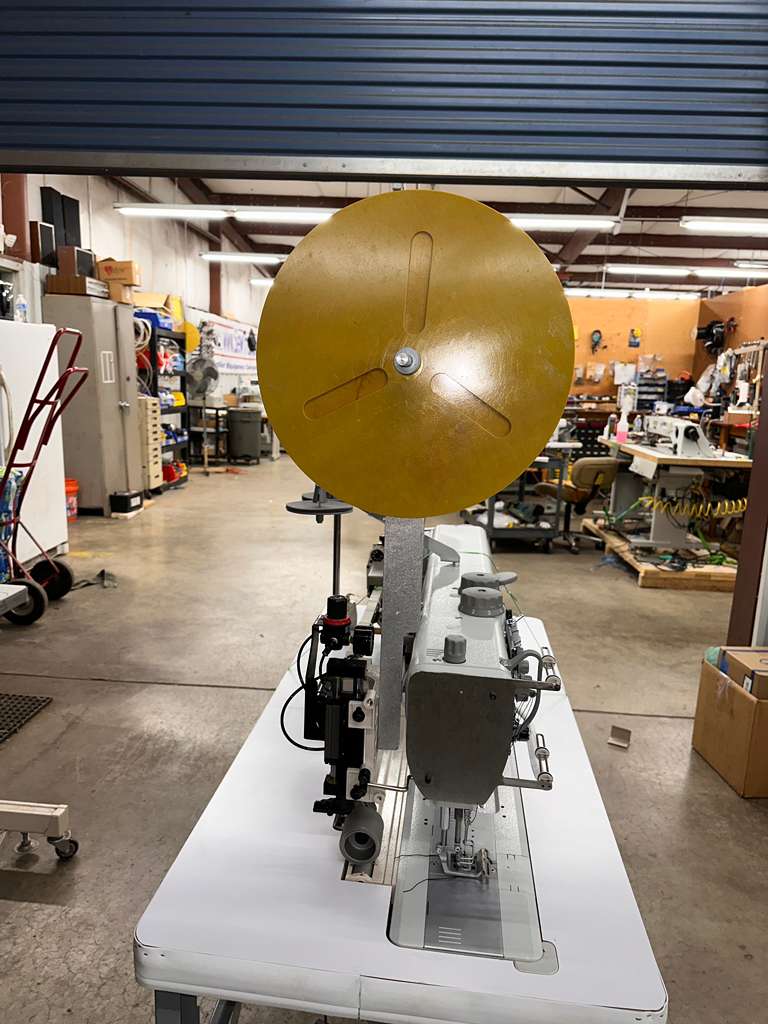

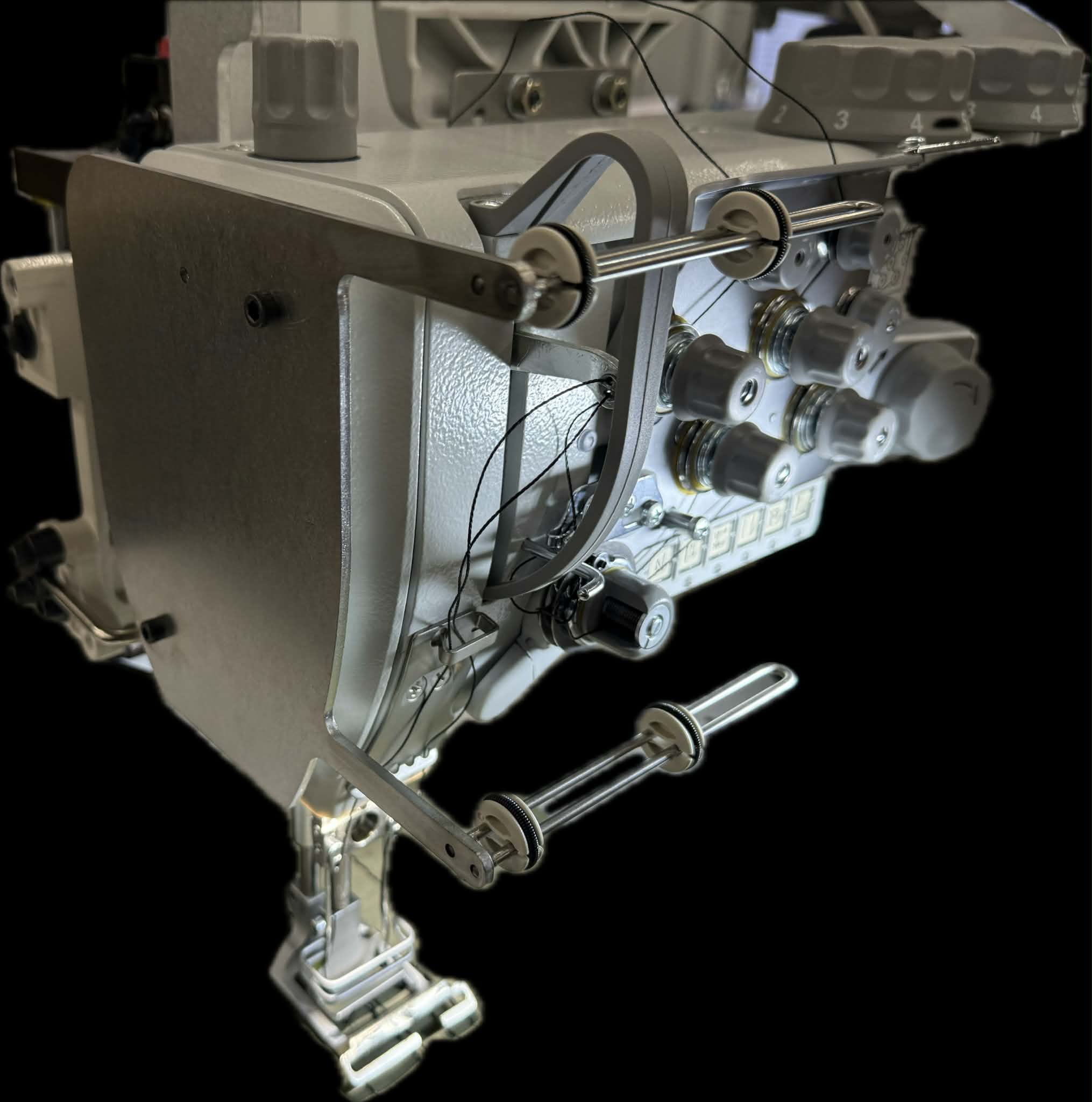

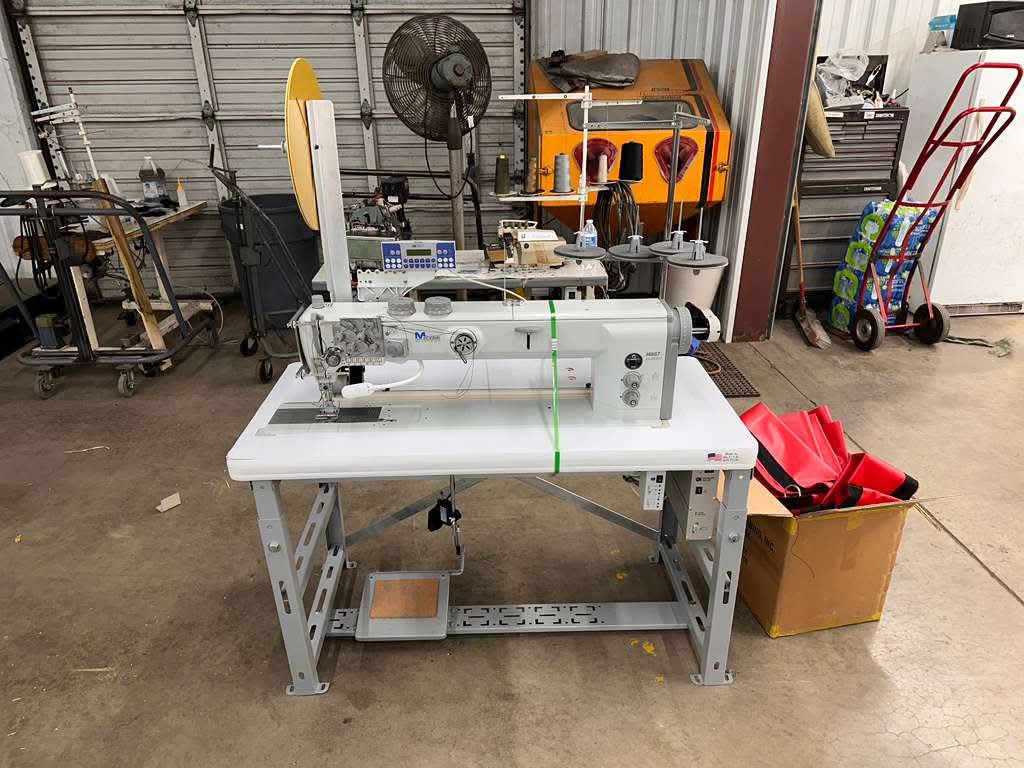

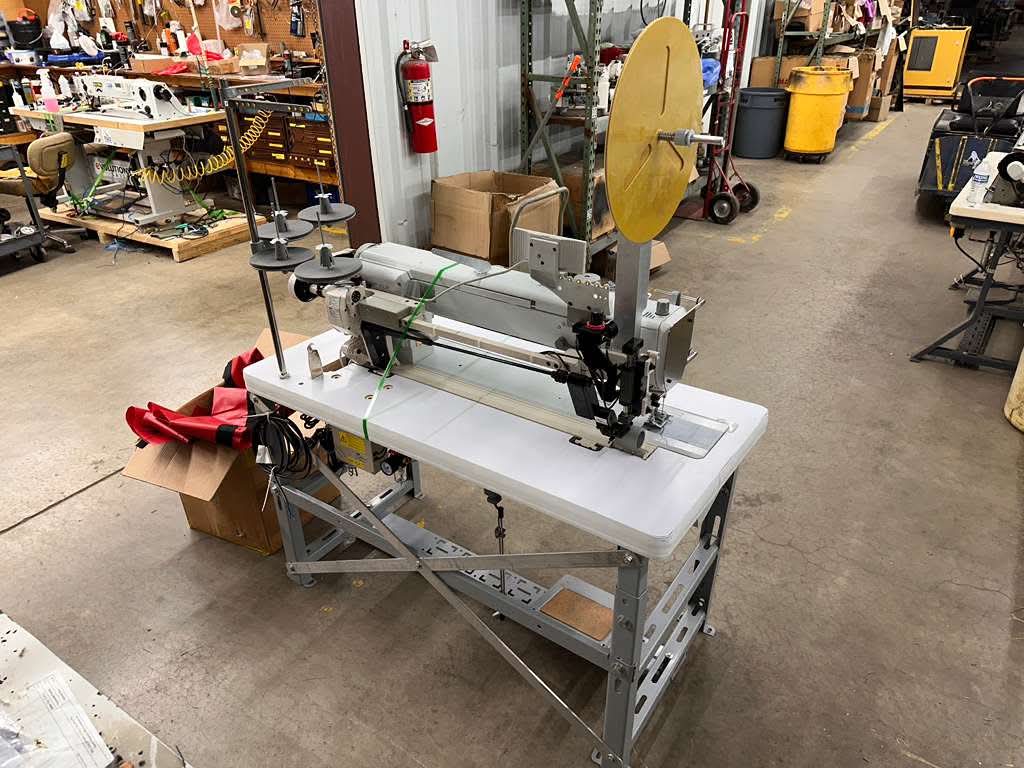

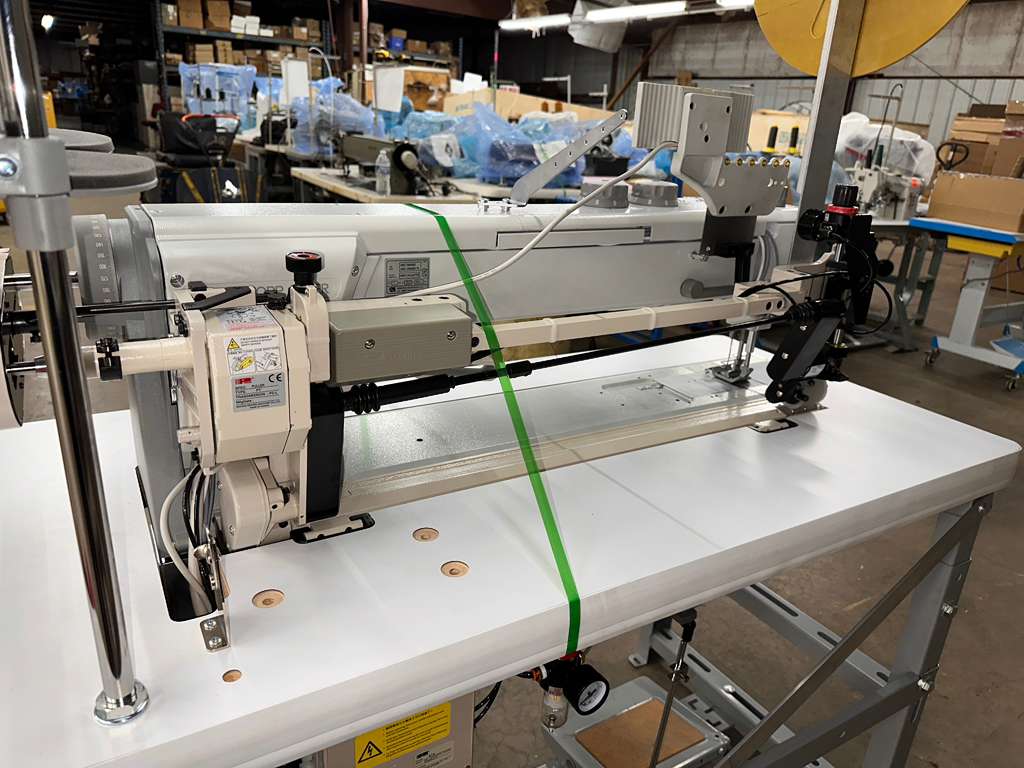

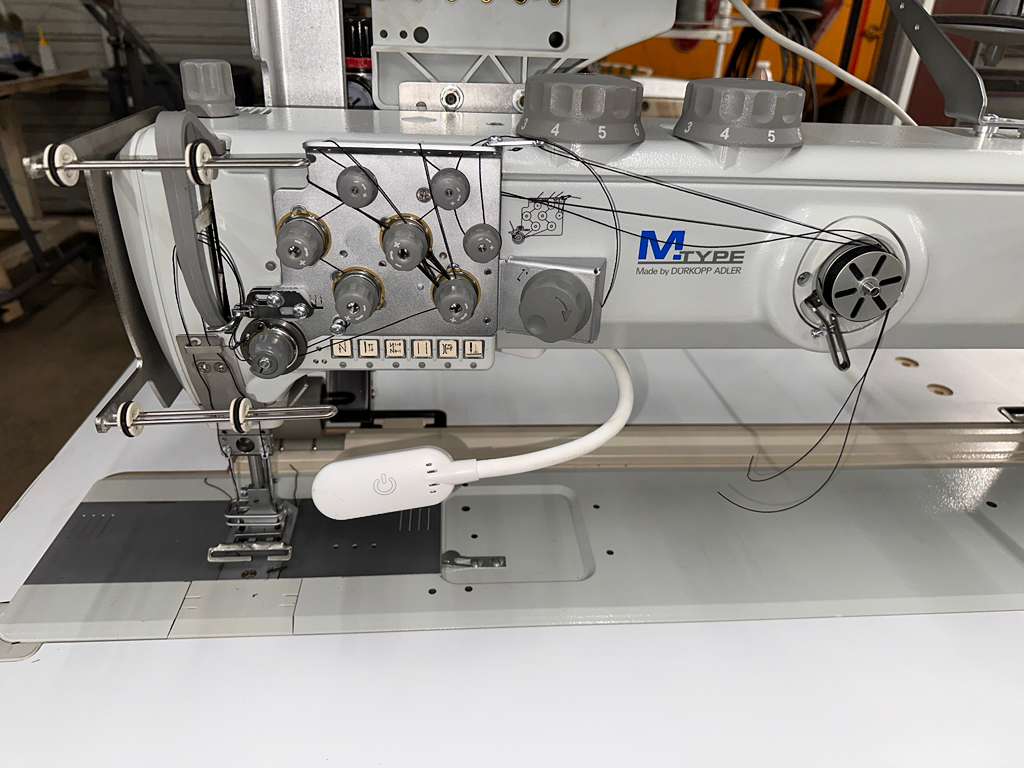

H867-70

Durkopp H867.  A new dimension in flexibility.

The powerful machines from the M-TYPE series set new standards in functionality and flexibility. They are the ideal operating means for demanding working processes in the field of medium-heavy duty sewing. The excellent performance parameters facilitate the processing of extreme thread and fabric thicknesses as well as a multitude of most different material.

THE BENEFITS AT A GLANCE

   * The large clearance, 335 mm wide (long arm version 700 mm) and 160 mm high facilitates the handling of large area workpieces.

   * The extremely high sewing foot lift up to 25 mm facilitates the feeding and removing of bulky workpieces.

   * Max. sewing speed up to 1,800 stitches/min.

   * Sewing drive with networkable DAC classic control incl. operating panel OP1000 – Industry 4.0 „ready”.

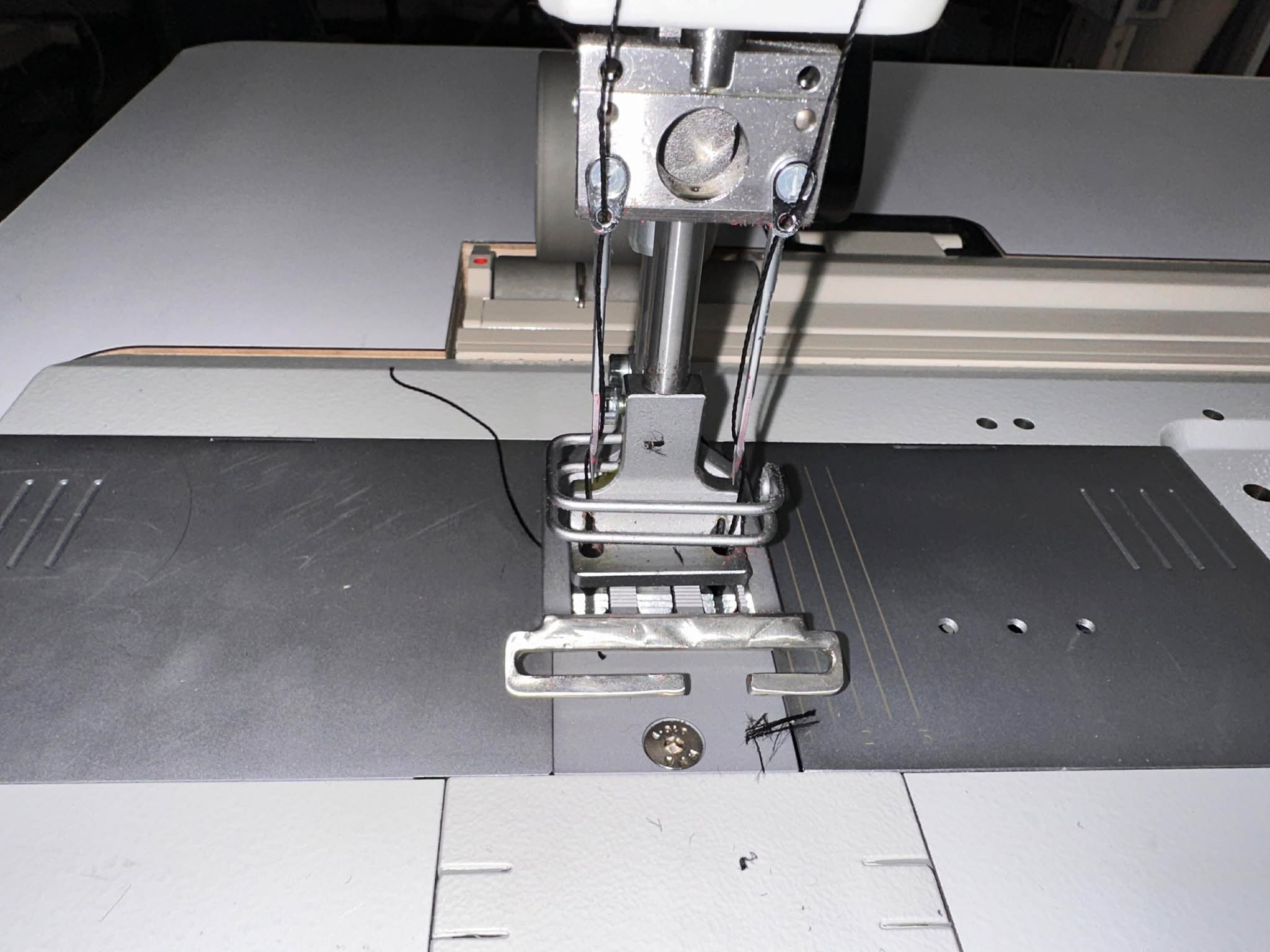

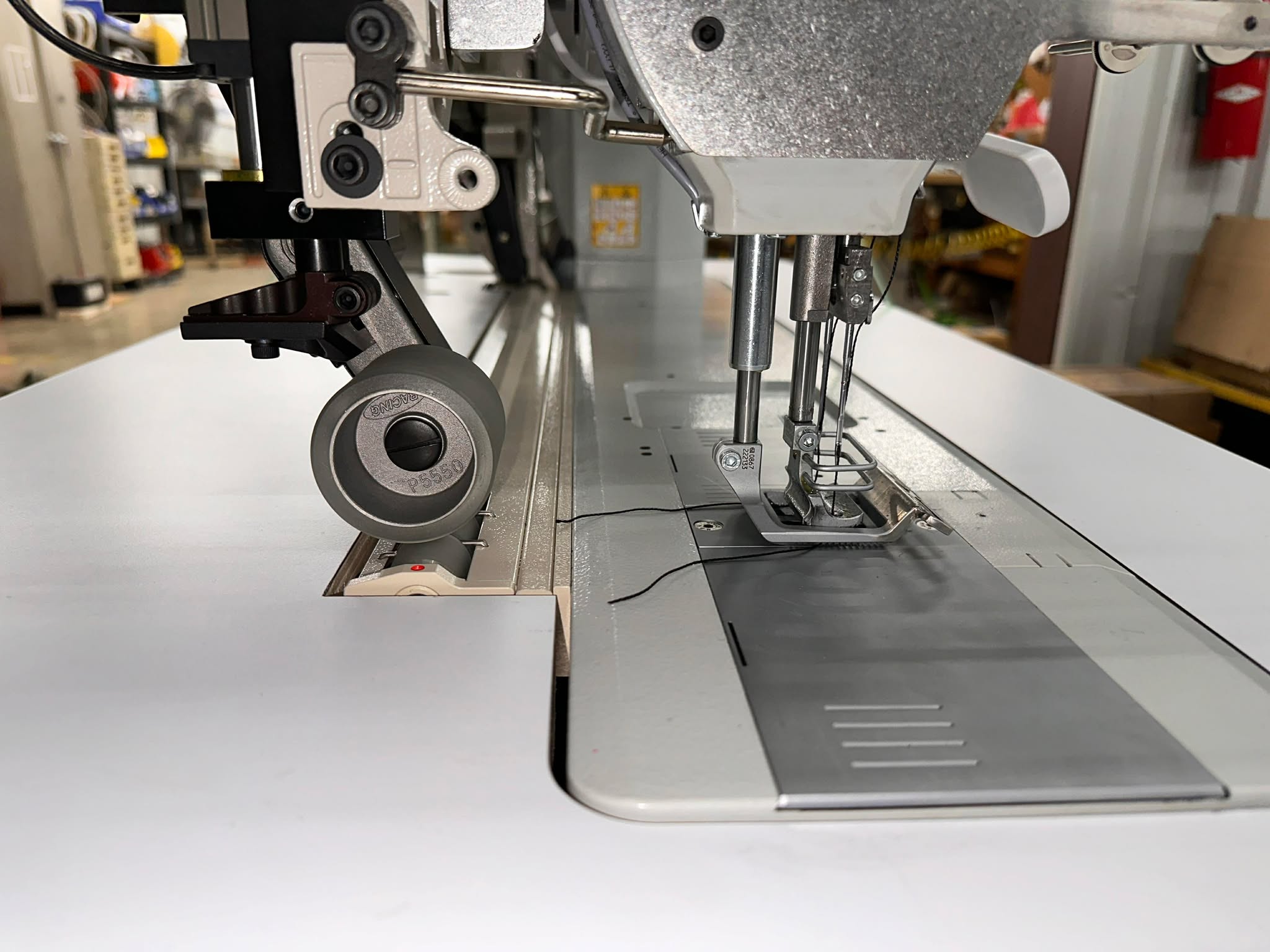

   * Powerful and effective feeding system with bottom feed, needle feed and alternating top feed.

   * The sewing foot stroke up to 9 mm allows the safe climbing over differently high material plies.

   * Robust thread trimmer guarantees a safe and clean cutting of extremely thick sewing threads.

   * Single needle or twin needle available.

   * Up to 12 mm long stitches for standard seams and decorative topstitching.

   * New hook system with 3XL bobbin for thread sizes up to Nm 8/3 max.

      *** Download the brochure or contact us for detailed specifications, depending on equipment model.
