Durkopp Adler
Browsing Durkopp Adler inside our premium line of Machine Brands.
Durkopp Adler

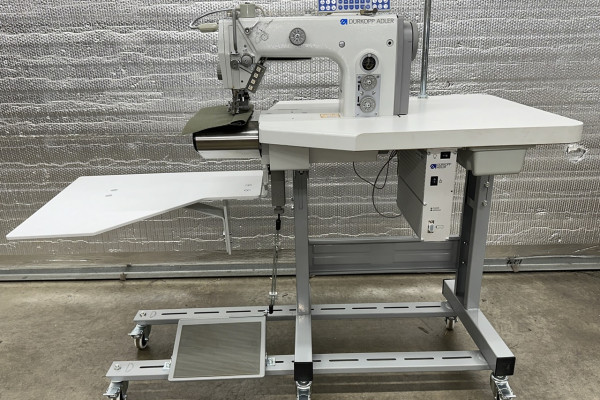

550-5-5-2
The optimised workstation offers a first-class solution for straight skirt and trouser waistbands.
Shaped waistbands can also be processed quickly and easily.
Topstitching is done both in the seam shadow and on the waistband edge.
Flat, pucker-free seams due to needle feed and top puller feed.
Intermitted working top puller feed with absolutely constant speed
Technical specifications
* Bottom feed, needle feed and top puller feed
* Disable backtacking, needle up/down and intermittent tacking, actuated by hand
* Horizontal hook, small (S, Ø 22mm)
* Lockstitch (301)
* Program control, operating panel OP1000
* Seam backtacking, sewing foot lift and thread cutting, pedal-controlled
* Sewing Material: L / M (see brochure for details)
* Single needle
* Stitch length: 4 (see brochure for written details)
* Stitches/min.: 5,000 (see brochure for written details)
* Thread nipper for a neat seam beginning
Compensating foot for 1.6mm topstitching width
Topstitching of straight or curved waist bands with a margin of 1,6 mm (optional hinged compensating foot 0274 006834) on the left hand side of the waistband with optional compensating foot for flexible use, e.g. for Casual trousers, ladies’ trousers and skirts etc.
Presser foot stroke adjustment
When processing thicker materials and pile fabrics (e.g. velvet / cord), the sewing foot stroke adjustment can be set to a value of up to 10. This helps to "float" the presser foot over the material, without putting pressure on the waist band. Warping the waistbands in sewing direction against the pile (line direction) is thus prevented. Only the needle and puller transports the material.
Performance in 480 min.
Approx. 500 – 550 trousers or skirts.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
* Phone: (256) 229-6595
* Email: durkopp-adler@CollierEquipment.com
• Lexington, Alabama 35648
• CEDAR Systems Automated Sewing Machines & Devices
• VMW Automated Sewing Equipment
• Tice Engineering
Durkopp Adler
261

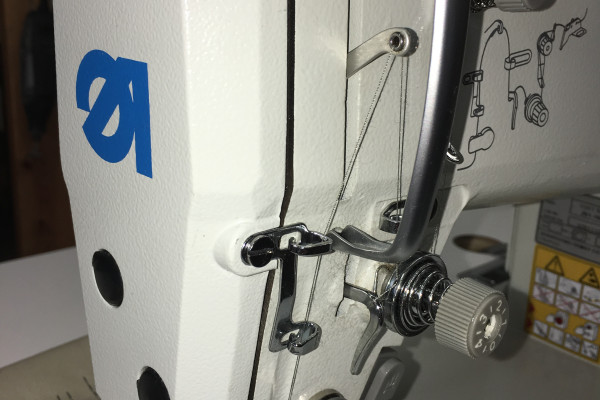

261 Single needle lockstitch machine with bottom feed
Whether light summer fabric or denim - many applications are possible.
The single needle lockstitch machines are equipped as standard with bottom feed and automatic functions like sewing foot lift, backtacking and thread trimmer. Depending on the subclass, the machines are equipped with a special short thread trimmer, which enables a thread end length of max. 3 mm.The control panel is perfectly integrated into the machine arm. Therefore it is easily accessible for the operator and allows quick settings for individual sewing. The minimum oil lubrication of the needle bar and the hook ensures a clean sewing area and guarantees a long service life of the machines.
Features:
* Automatic sewing foot lifting, backtacking and thread trimmer/ short thread trimmer with a thread end length of max. 3 mm (depending on the subclass).
* Bilingual operation panel (english and chinese).
* High efficiency through energy-saving, integrated direct drive.
* LED sewing field lighting:
The integrated, dimmable LED sewing field lighting supports visibility without creating shadows.
* Minimum oil lubrication
The minimum oil lubrication of the needle bar and the hook ensures a clean sewing area and guarantees a long service life of the machines.
* Thread nipper
The machine achieves an accurate seam beginning by means of the standard thread nipper. It pulls the thread ends to the left material side and thus achieves a clean right fabric side where the seam ends are not visible.
* Integrated touch control panel for programming and calling up of seam programs (exclusively available for class 262-02).
The touch control panel is perfectly integrated into the machine arm (exclusively available for class 262-02). It is therefore easily accessible for the operator and allows quick settings for individual sewing.
* The USB slot can be used e.g. for charging cell phones or other USB interfaces.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
* Phone: (256) 229-6595
* Email: durkopp-adler@CollierEquipment.com
Durkopp Adler

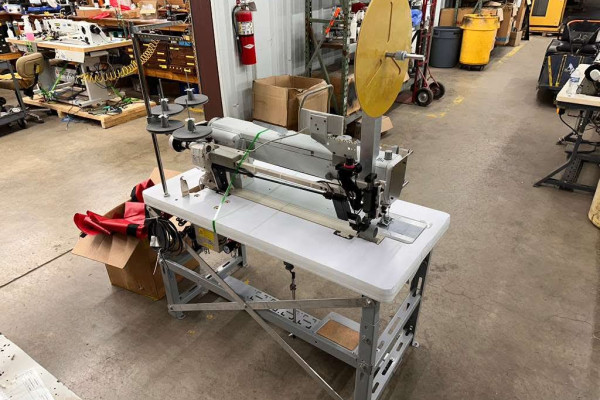

H867-70
Durkopp H867. A new dimension in flexibility.
The powerful machines from the M-TYPE series set new standards in functionality and flexibility. They are the ideal operating means for demanding working processes in the field of medium-heavy duty sewing. The excellent performance parameters facilitate the processing of extreme thread and fabric thicknesses as well as a multitude of most different material.
THE BENEFITS AT A GLANCE
* The large clearance, 335 mm wide (long arm version 700 mm) and 160 mm high facilitates the handling of large area workpieces.
* The extremely high sewing foot lift up to 25 mm facilitates the feeding and removing of bulky workpieces.
* Max. sewing speed up to 1,800 stitches/min.
* Sewing drive with networkable DAC classic control incl. operating panel OP1000 – Industry 4.0 „ready”.
* Powerful and effective feeding system with bottom feed, needle feed and alternating top feed.
* The sewing foot stroke up to 9 mm allows the safe climbing over differently high material plies.
* Robust thread trimmer guarantees a safe and clean cutting of extremely thick sewing threads.
* Single needle or twin needle available.
* Up to 12 mm long stitches for standard seams and decorative topstitching.
* New hook system with 3XL bobbin for thread sizes up to Nm 8/3 max.
*** Download the brochure or contact us for detailed specifications, depending on equipment model.
