Mauser Spezial
MP-2210
MP 2210-H80
Large field CNC controlled pattern stitcher with a sewing field of 220mm x 100mm.
Equipped with a needle thread break sensor and a sewing speed of up to 2,800 spm this pattern stitcher series is a workhorse in the sewing industry.
Fields of application range from apparel to footwear to upholstery and automotive.
Quick Clamp Exchange System (Optional)
The quick exchange system for sewing clamps allows an overlaping working method.
While sewing one clamp you can prepare a second clamp and easily change the clamps after the machine has finished the sewing cycle.
LCD Touch Screen
The intuitive 7.5" touch screen operating panel allows you wo modify existing sewing programs easily.
It also makes onboard creation (teach-in) of new sewing programs fast and easy.
Programmable Thread Tension
The programmable thread tension allows to set a specific tension value per seam or seam segment. Values can be stored in a seam program and reproduced or shared at any time.
The integrated thread break sensor stops the sewing cycle when a breakage is detected to minimize waste.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
* Phone: (256) 229-6595
* Email: mauser-spezial@collierequipment.com
Mauser Spezial
MS-591
MS-591-900/83-910/17-911/50 BL5
Standard single needle post-bed lockstitch machine with wheel feed and driven roller presser (forward and backwards!)
Equipped with energy efficient, fully integrated sewing drive and built-in electromagnetic thread trimmer, seam back tacking and sewing foot lift. The machine does n,
The standard in shoe production!
Stitch-In-Stitch Backtacking
The lower feeding wheel as well as the upper roller presser are driven in sewing direction as well as sewing backwards when backtacking.
Integrated Key Bar
The integrated key bar allows seam backtacking and intermediate backtacking, backtack suppression and needle up position at sewing stop.
Electromagnetic Functions
The machine comes standard with 30mm roller presser (diameter). 25mm and 35mm roller presser are available as an option.
The small vertical hook ensures best sewing results on classic and sport shoes.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
* Phone: (256) 229-6595
* Email: mauser-spezial@collierequipment.com

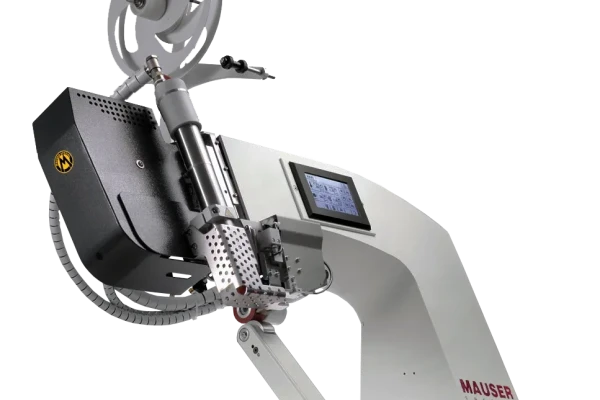

Mauser Spezial
MW-1720-384
Hot Air - Seam Sealing Machine
Mauser Spezial MW1720-384
- Hot air tape welding machine for continuous seam sealing of water repellent, waterproof and breathable materials.
- All welding parameters are programmable via touch screen and can be saved as a program.
- This allows the operator to load a saved program at any time and therefore ensure exact reproducibility and process security of the weld seam.
- The upper and lower transport rollers are driven separately by motors and thus ensure optimum adaptation of the material transport to the respective operation, with or without fullness.
- The machine welds immediately from the beginning of the tape, there is no loose ends and no need to re-cut the tape.
- The result is lower tape consumption and less cost than with other tape welding machines.
- The tape cutter is electronically controlled and easily adjustable.
Typical applications include:
* Tents, Sleeping Bags, Rain Suits, Dry Storage Coverings, etc.
Standard Equipment for the MW-1720-384:
* Post from the front for easy handling of garments, protective apparel and other outdoor items such as tents or other flat workpieces.
* Steel lower transport roller in conjunction with a silicone upper transport roller, both with a width of 25 mm.
* The machine is equipped with a 22 mm hot air nozzle to process seam sealing tape of the same width.
* The electronic tape cutter can cut tapes up to 25 mm width.
To boost productivity, the machine is able to run welding speeds of up to 14 meters per minute.
It is completely set up on a height adjustable stand set with table top for sitting down operation.
* Other setups and equipment are available on request.
Features:
* Touch control panel for setting and storage of all relevant welding parameters.
* Post from the front for easy handling of welding material.
* Electronically controlled and fully concealed tape cutter for precise cutting of up to 25 mm tapes.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
* Phone: (256) 229-6595
* Email: mauser-spezial@collierequipment.com
Other Brands
Tony 310 & 315s
The Tony Model H-315s is a Top Feed and Bottom Feed walking foot zig-zag industrial sewing machine featuring a large capacity bobbin, reverse capability, and cylindrical arm geometry that is ideal for tubular goods like koozies and wetsuits. The Tony H-315 is a specialized industrial feed-off-the-arm walking foot zigzag machine.
The Tony Model 310 is a Bottom Feed, feed off the arm zig-zag sewing machine for lighter weight fabrics.
Key Specifications
* Max Speed: 2600–2800 stitches per minute
* Max Stitch Length: 5 mm
* Max Zig Zag Width: 10 mm
* Max Presser Foot Lift: 10 mm
* Cylinder/Arm Diameter: Approx. 46 mm to 55 mm
* Feed System:
- 310: Bottom Feed only.
- 315s: Top Feed & Bottom Feed ( Walking foot with double presser foot )
* Applications & DesignCylindrical Seaming: Built for closed, tubular, or curved items like neoprene can holders/koozies, filtration units, leather boots, and wetsuits.
* Heavy-Duty Handling: Utilizes a large hook and reverse feed mechanism suited for thick, flexible, or sticky materials.
* Custom Folders, Binders and Guides for the Sewn Products Industry.
Collier Equipment
Website: https://collierequipment.com/
Email: Sales@CollierEquipment.com
Phone: (256) 229-6595
Lexington, Alabama 35648
• CEDAR Systems Automated Sewing Machines & Devices
• VMW Automated Sewing Equipment
• Tice Engineering
Durkopp Adler
550-5-5-2
The optimised workstation offers a first-class solution for straight skirt and trouser waistbands.
Shaped waistbands can also be processed quickly and easily.
Topstitching is done both in the seam shadow and on the waistband edge.
Flat, pucker-free seams due to needle feed and top puller feed.
Intermitted working top puller feed with absolutely constant speed
Technical specifications
* Bottom feed, needle feed and top puller feed
* Disable backtacking, needle up/down and intermittent tacking, actuated by hand
* Horizontal hook, small (S, Ø 22mm)
* Lockstitch (301)
* Program control, operating panel OP1000
* Seam backtacking, sewing foot lift and thread cutting, pedal-controlled
* Sewing Material: L / M (see brochure for details)
* Single needle
* Stitch length: 4 (see brochure for written details)
* Stitches/min.: 5,000 (see brochure for written details)
* Thread nipper for a neat seam beginning
Compensating foot for 1.6mm topstitching width
Topstitching of straight or curved waist bands with a margin of 1,6 mm (optional hinged compensating foot 0274 006834) on the left hand side of the waistband with optional compensating foot for flexible use, e.g. for Casual trousers, ladies’ trousers and skirts etc.
Presser foot stroke adjustment
When processing thicker materials and pile fabrics (e.g. velvet / cord), the sewing foot stroke adjustment can be set to a value of up to 10. This helps to "float" the presser foot over the material, without putting pressure on the waist band. Warping the waistbands in sewing direction against the pile (line direction) is thus prevented. Only the needle and puller transports the material.
Performance in 480 min.
Approx. 500 – 550 trousers or skirts.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
* Phone: (256) 229-6595
* Email: durkopp-adler@CollierEquipment.com
• Lexington, Alabama 35648
• CEDAR Systems Automated Sewing Machines & Devices
• VMW Automated Sewing Equipment
• Tice Engineering
Durkopp Adler
261
261 Single needle lockstitch machine with bottom feed
Whether light summer fabric or denim - many applications are possible.
The single needle lockstitch machines are equipped as standard with bottom feed and automatic functions like sewing foot lift, backtacking and thread trimmer. Depending on the subclass, the machines are equipped with a special short thread trimmer, which enables a thread end length of max. 3 mm.The control panel is perfectly integrated into the machine arm. Therefore it is easily accessible for the operator and allows quick settings for individual sewing. The minimum oil lubrication of the needle bar and the hook ensures a clean sewing area and guarantees a long service life of the machines.
Features:
* Automatic sewing foot lifting, backtacking and thread trimmer/ short thread trimmer with a thread end length of max. 3 mm (depending on the subclass).
* Bilingual operation panel (english and chinese).
* High efficiency through energy-saving, integrated direct drive.
* LED sewing field lighting:
The integrated, dimmable LED sewing field lighting supports visibility without creating shadows.
* Minimum oil lubrication
The minimum oil lubrication of the needle bar and the hook ensures a clean sewing area and guarantees a long service life of the machines.
* Thread nipper
The machine achieves an accurate seam beginning by means of the standard thread nipper. It pulls the thread ends to the left material side and thus achieves a clean right fabric side where the seam ends are not visible.
* Integrated touch control panel for programming and calling up of seam programs (exclusively available for class 262-02).
The touch control panel is perfectly integrated into the machine arm (exclusively available for class 262-02). It is therefore easily accessible for the operator and allows quick settings for individual sewing.
* The USB slot can be used e.g. for charging cell phones or other USB interfaces.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
* Phone: (256) 229-6595
* Email: durkopp-adler@CollierEquipment.com
Durkopp Adler
H867-70
Durkopp H867. A new dimension in flexibility.
The powerful machines from the M-TYPE series set new standards in functionality and flexibility. They are the ideal operating means for demanding working processes in the field of medium-heavy duty sewing. The excellent performance parameters facilitate the processing of extreme thread and fabric thicknesses as well as a multitude of most different material.
THE BENEFITS AT A GLANCE
* The large clearance, 335 mm wide (long arm version 700 mm) and 160 mm high facilitates the handling of large area workpieces.
* The extremely high sewing foot lift up to 25 mm facilitates the feeding and removing of bulky workpieces.
* Max. sewing speed up to 1,800 stitches/min.
* Sewing drive with networkable DAC classic control incl. operating panel OP1000 – Industry 4.0 „ready”.
* Powerful and effective feeding system with bottom feed, needle feed and alternating top feed.
* The sewing foot stroke up to 9 mm allows the safe climbing over differently high material plies.
* Robust thread trimmer guarantees a safe and clean cutting of extremely thick sewing threads.
* Single needle or twin needle available.
* Up to 12 mm long stitches for standard seams and decorative topstitching.
* New hook system with 3XL bobbin for thread sizes up to Nm 8/3 max.
*** Download the brochure or contact us for detailed specifications, depending on equipment model.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
Phone: (256) 229-6595
Email: durkopp-adler@CollierEquipment.com
Durkopp Adler
967
Durkopp Adler 967
PURE / ECO / CLASSIC
Single needle lockstitch flat bed machines with barrel shuttle hook for heavy-weight sewing materials.
H-TYPE 967 PURE / ECO / CLASSIC
– Your advantages:
Excellent stitch pattern and constantly tight stitches, even when sewing with extremely thick threads up to Nm 5/3.
The large clearance, 420 mm (longarm version 1,000 mm) wide and 225 mm high, facilitates the handling of large area workpieces.
Up to 15 mm long stitches for assembly and decorative seams.
The extremely high sewing foot lift up to 30 mm facilitates the feeding and removing of bulky workpieces.
High productivity due to the XL barrel shuttle hook – 70% larger bobbin capacity in comparison to the standard hook.
The alternating top feed up to 12 mm allows the safe climbing over differently high material plies.
Optional equipment “heavy-duty applications”: Improved transport, higher tractive force and uniform stitch tightening in very thick material thicknesses due to triangular eccentric (only ex works, not for 967100382-100).
See below to download the full brochure with added benefits and specificaions.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
Phone: (256) 229-6595
Email: durkopp-adler@CollierEquipment.com
Kansai Special
SQ7702FB
Kansai Special SQ7702FB-L/AP/DD
2 Needle, Double Chain Stitch, Feed off the arm for tape attaching.
Made in Japan with a differential feeding system for tape attaching with pneumatic foot lift. Optional manually operated pneumatic tape cutter.
* Features
* Differential feed mechanism to help prevent drag induced puckering.
* Oil filtering system for clean oil and long durability.
* Direct Drive
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
Phone: (256) 229-6595
Email: Kansai-Special@CollierEquipment.com
Kansai Special
SX6803-PD
The Kansai Special SX6803-PD is a 3-needle, feed-off-the-arm double chain stitch machine built for lap seaming heavy fabrics like denim.
Key Specifications:
* Machine Type: 3-needle, feed-off-the-arm double chain stitch (Type 401) for lap seaming.
* Application: Heavy-weight materials like jeans and work pants.
* Max Sewing Speed: Up to 4,500 rpm.
* Needle System: TV × 3 (#21).
* Stitch Length: Up to 4.2 mm (approx. 6–12 stitches per inch).
* Presser Foot Lift: 8 mm maximum (Optional Pneumatic Foot Lift Device).
* Special Features: Equipped with a rear puller mechanism and differential feed for advanced fabric control over heavy cross seams.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
Phone: (256) 229-6595
Email: Kansai-Special@CollierEquipment.com
Kansai Special
DFB-1412PTV
Flatbed, Pintucking machine ( a/k/a Tuxedo Pleat )
12 needle, flatbed, double chain stitch machine for pintucking operation.
The width of pin-tucking can be changed 2,5 and 8mm by changing the nail blades.
Needle gauge available: 3/16", 1/4", 3/8" & 1/2"
With Rear Puller.
Highly Specialized. Samples of thread, fabric and seam are required.
* Custom Folders, Binders, Guides and Clamp Sets for the Sewn Products Industry.
For more information, call or email.
Phone: (256) 229-6595
Email: Kansai-Special@CollierEquipment.com
