Programmable Pattern Tacker

Browsing Programmable Pattern Tacker inside our premium line of Machine Types.

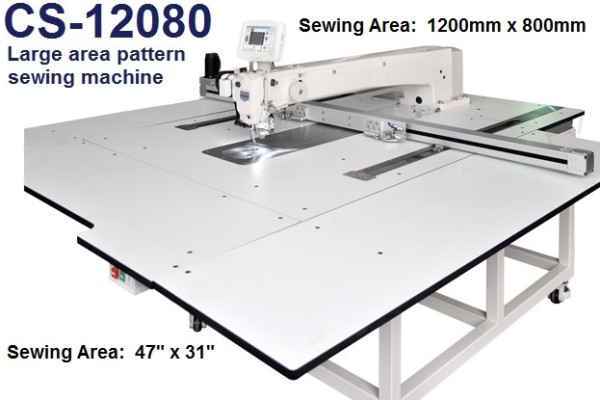

CS-12080

Our CS-12080 is one of our larger Programmable Pattern machine. Used in operations like Home Décor, Large Interior Patterns to be seamless and much more. * Some features of the machine include: * Sewing Speed: 2,500 spm, (XY Axis moving speed maximum 10meters/minute. * Hook: 2X Japan Hirose Hook / Koban Hook (3X Size Hook is Optional). * Uses latest A8 CPU, Disk/USB Date Memory, XYZ Servo Motor, Highly Accurate (to 0.001mm). * All templates work with Intelligent Judgement. * Thread - Break Detector. (Bottom thread stitch quantity is optional). *Sewing Area: X = 1,200mm, Y = 800mm. Larger sizes are available. * Needle Type: DPx5 / DPx17 * Sewing Thickness: 0.1mm - 10mm. * Presser Foot: Electropneumatic. * Applications: Tents, Sleeping Mats, Drapes, Banners, etc... In this video, we are sewing more than 200 MOLLE Style Bar Tacks per pallet. The right and left sides of the webbing is hot cut and turned under. The 2nd pallet in this video has longer left and right tabs to be able to reach over the extended panel to hold the folded webbing. This machine is equipped with a bar code reader that switches the program automatically between pallets. Thanks for watching and sharing our videos. I hope you enjoy the video as much as we enjoy building Automated Machines for the Industrial Sewing Industry. * Custom Designed Pallet Systems are available. * Custom Folders, Binders and Guides for the Sewn Products Industry. • Phone: (256) 229-6595 • Email: cedar-special@collierequipment.com

View Full Specifications

Programmable Pattern Tacker

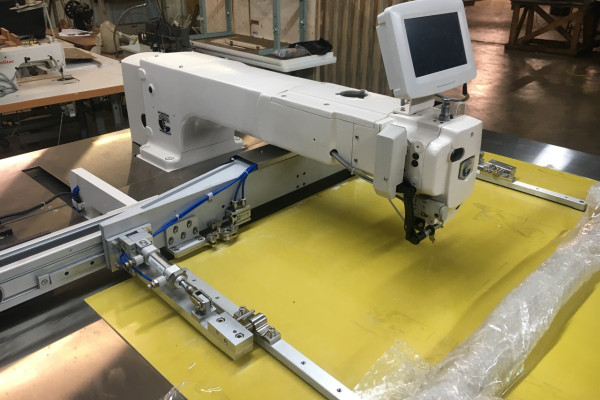

CS-6040+

Our CS-6040+ ( 600mm x 400mm ) is also available as a CS-10040 ( 1000mm x 400mm ) and represent some of our larger Programmable Pattern machines. Used in operations like Home Décor, Large Interior Patterns to be seamless and much more. Some features of the machine include: * Sewing Speed: 2,500 spm, (XY Axis moving speed maximum 10meters/minute. * Hook: 2X Japan Hirose Hook / Koban Hook (3X Size Hook is Optional). * Uses latest A8 CPU, Disk/USB Date Memory, XYZ Servo Motor, Highly Accurate (to 0.001mm). * All templates work with Intelligent Judgement. * Thread - Break Detector. (Bottom thread stitch quantity is optional). * Needle Type: DPx5 / DPx17 * Sewing Thickness: 0.1mm - 10mm. * Presser Foot: Electropneumatic. * Applications: Tents, Sleeping Mats, Drapes, Banners, etc... Thanks for watching and sharing our videos. I hope you enjoy the video as much as we enjoy building Automated Machines for the Industrial Sewing Industry. * Custom Designed Pallet Systems are available. * Custom Folders, Binder and Guides for the Sewn Products Industry. For more information, please call or email. • Phone: (256) 229-6595 • Email: cedar-special@collierequipment.com

View Full Specifications

Programmable Pattern Tacker

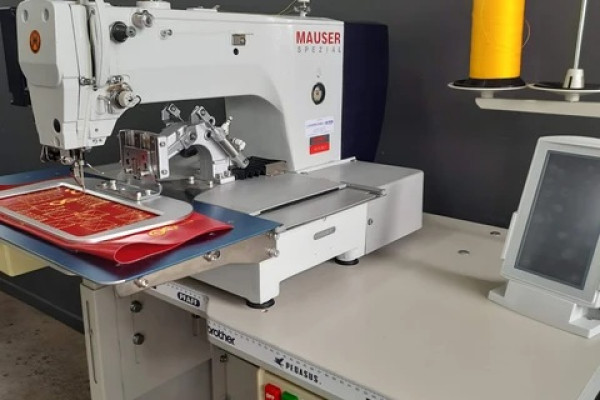

MP-2210

MP 2210-H80 Large field CNC controlled pattern stitcher with a sewing field of 220mm x 100mm. Equipped with a needle thread break sensor and a sewing speed of up to 2,800 spm this pattern stitcher series is a workhorse in the sewing industry. Fields of application range from apparel to footwear to upholstery and automotive. Quick Clamp Exchange System (Optional) The quick exchange system for sewing clamps allows an overlaping working method. While sewing one clamp you can prepare a second clamp and easily change the clamps after the machine has finished the sewing cycle. LCD Touch Screen The intuitive 7.5" touch screen operating panel allows you wo modify existing sewing programs easily. It also makes onboard creation (teach-in) of new sewing programs fast and easy. Programmable Thread Tension The programmable thread tension allows to set a specific tension value per seam or seam segment. Values can be stored in a seam program and reproduced or shared at any time. The integrated thread break sensor stops the sewing cycle when a breakage is detected to minimize waste. * Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry. For more information, call or email. * Phone: (256) 229-6595 * Email: mauser-spezial@collierequipment.com

View Full Specifications
