Industrial Catalog & Supplies

We are a family business with over 100 years combined experience in the Sewn Products Industry, providing high-quality Parts and Supplies for all your sewing needs. Browse our collection and find exactly what you need for your next project. We also offer custom made Folders / Binders, Gauge Sets, etc.

We are continuously adding products to our store. If you don't find what you are looking for, call our office at 256-229-6595 or send an email to parts@collierequipment.com.

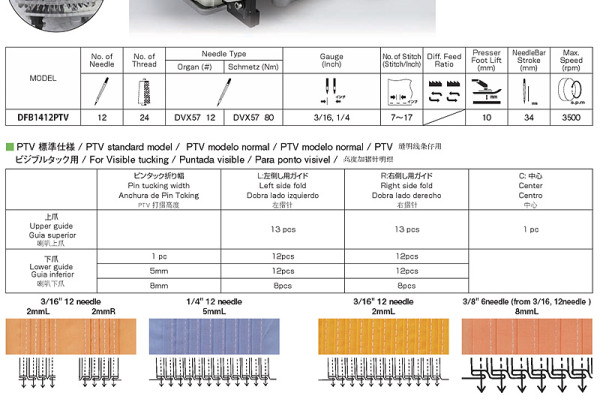

DFB1412-PTV Chain Stitch

DFB1412-PTV

Flatbed, Pintucking machine ( a/k/a Tuxedo Pleat ) 12 needle, flatbed, double chain stitch machine for pintucking operation. The width of pin-tucking can be changed 2,5 and 8mm by changing the nail blades. Needle gauge available: 3/16", 1/4", 3/8" & 1/2" With Rear Puller. Highly Specialized.   Samples of thread, fabric and seam are required.         * Custom Folders, Binders, Guides and Clamp Sets for the Sewn Products Industry.           For more information, call or email.      Phone: (256) 229-6595     Email: Kansai-Special@CollierEquipment.com
View Full Specifications

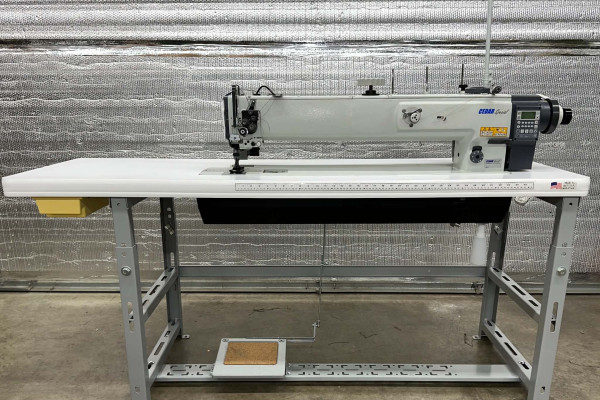

CS-1560L30-7DJ Cedar Special

CS-1560L30-7DJ

The CEDAR Special CS-1560L30-7DJ with a 30" Long Arm clearance is a heavy-duty, 2-needle unison-feed (walking foot) lockstitch machine featuring an automatic thread trimmer and an alternating foot stroke adjusting dial.  It is built for heavy materials like leather, canvas, upholstery, and vinyl.    * Key Specifications         * With or without Rear Puller.         * Direct Drive         * Automatic Thread Trim         * Automatic Back Tack         * Automatic Foot Lift         * Sewing Speed: Up to 2,000 stitches per minute (spi/min)         * Stitch Length: Up to 9 mm (both forward and reverse)         * Needle System: 135x17 (Sizes from Nm125 to Nm180)         * Needle Bar Stroke: 36 mm         * Presser Foot Lift: 9 mm (by hand), 16 mm (by knee or auto-lifter)         * Alternating Vertical Movement: Adjustable between 1 mm to 6.5 mm         * Hook: Vertical-axis double-capacity hooks         * Standard Needle Gauges: 1/4" (6.4 mm) (Available from 3/16" to 1/2")  * Custom Folders, Binders, Hemmers, Guides and Clamp Sets for the Sewn Products Industry.  For more information, call or email.  Phone: (256) 229-6595  Email: CEDAR-Special@CollierEquipment.com
View Full Specifications

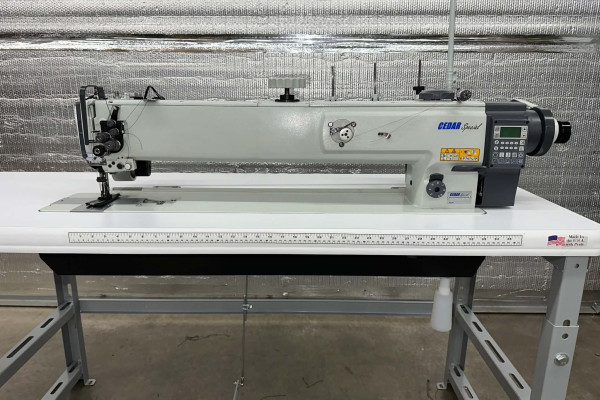

CS-1560L30-7DJ Walking Foot

CS-1560L30-7DJ

The CEDAR Special CS-1560L30-7DJ with a 30" Long Arm clearance is a heavy-duty, 2-needle unison-feed (walking foot) lockstitch machine featuring an automatic thread trimmer and an alternating foot stroke adjusting dial.  It is built for heavy materials like leather, canvas, upholstery, and vinyl.    * Key Specifications         * With or without Rear Puller.         * Direct Drive         * Automatic Thread Trim         * Automatic Back Tack         * Automatic Foot Lift         * Sewing Speed: Up to 2,000 stitches per minute (spi/min)         * Stitch Length: Up to 9 mm (both forward and reverse)         * Needle System: 135x17 (Sizes from Nm125 to Nm180)         * Needle Bar Stroke: 36 mm         * Presser Foot Lift: 9 mm (by hand), 16 mm (by knee or auto-lifter)         * Alternating Vertical Movement: Adjustable between 1 mm to 6.5 mm         * Hook: Vertical-axis double-capacity hooks         * Standard Needle Gauges: 1/4" (6.4 mm) (Available from 3/16" to 1/2")  * Custom Folders, Binders, Hemmers, Guides and Clamp Sets for the Sewn Products Industry.  For more information, call or email.  Phone: (256) 229-6595  Email: CEDAR-Special@CollierEquipment.com
View Full Specifications

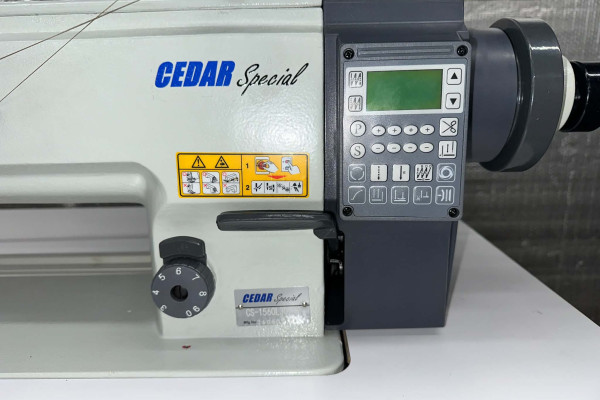

CS-1560L30-7DJ Long Arm

CS-1560L30-7DJ

The CEDAR Special CS-1560L30-7DJ with a 30" Long Arm clearance is a heavy-duty, 2-needle unison-feed (walking foot) lockstitch machine featuring an automatic thread trimmer and an alternating foot stroke adjusting dial.  It is built for heavy materials like leather, canvas, upholstery, and vinyl.    * Key Specifications         * With or without Rear Puller.         * Direct Drive         * Automatic Thread Trim         * Automatic Back Tack         * Automatic Foot Lift         * Sewing Speed: Up to 2,000 stitches per minute (spi/min)         * Stitch Length: Up to 9 mm (both forward and reverse)         * Needle System: 135x17 (Sizes from Nm125 to Nm180)         * Needle Bar Stroke: 36 mm         * Presser Foot Lift: 9 mm (by hand), 16 mm (by knee or auto-lifter)         * Alternating Vertical Movement: Adjustable between 1 mm to 6.5 mm         * Hook: Vertical-axis double-capacity hooks         * Standard Needle Gauges: 1/4" (6.4 mm) (Available from 3/16" to 1/2")  * Custom Folders, Binders, Hemmers, Guides and Clamp Sets for the Sewn Products Industry.  For more information, call or email.  Phone: (256) 229-6595  Email: CEDAR-Special@CollierEquipment.com
View Full Specifications
